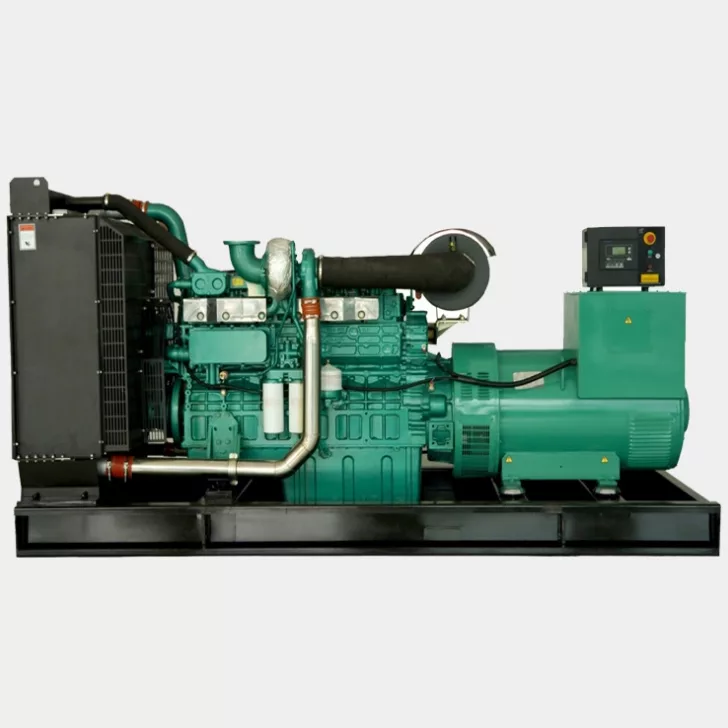

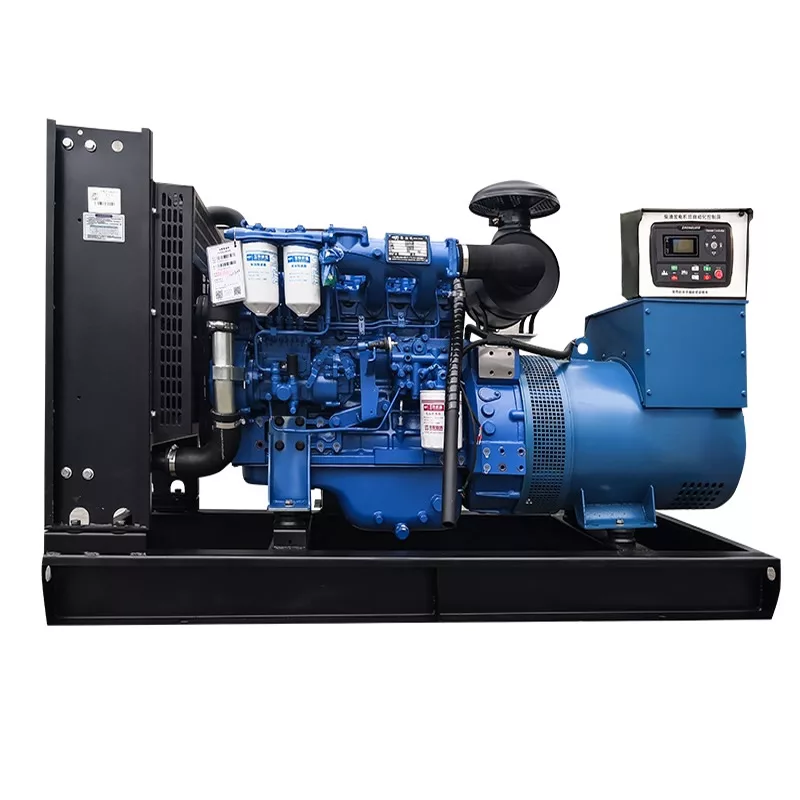

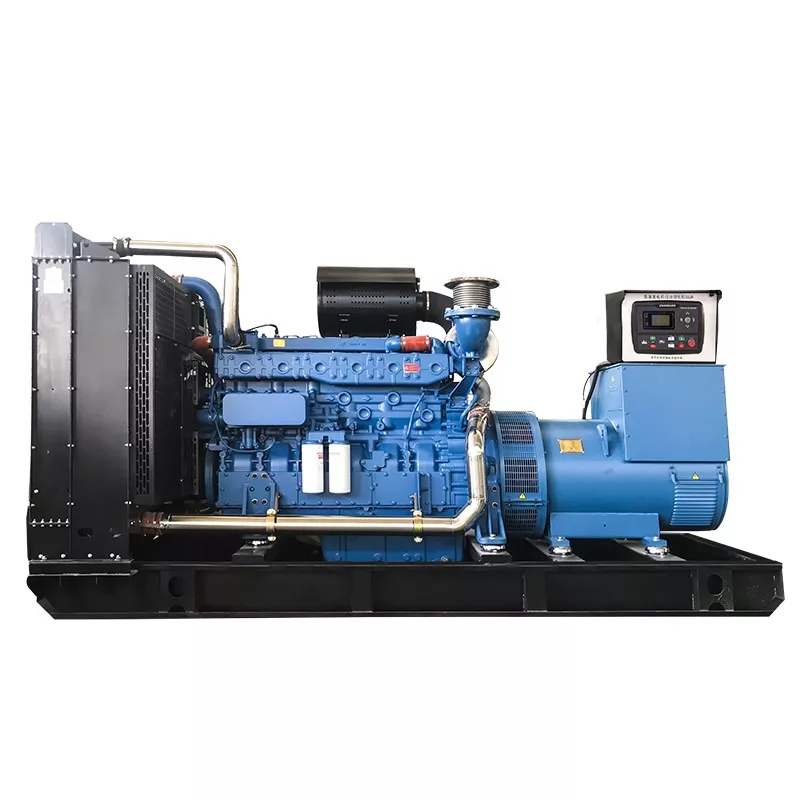

Yuchai Series Generator Set
- Output Power
- 40KW-2200KW
- Engine
- YuChai
- Alternator
- Stamford/Marathon
- Frequency
- 50HZ/60HZ
- Type
- Diesle Genset
Yuchai Diesel Generator Set For Sale
Genset Main Technical Data
- Genset Model: BF-Y15 TO BF-Y1500
- Frequency:50hz/60hz
- Speed: 1500/1800rpm
- Voltage: 220v-600v
- Phase: Three phase four wires
- TYPE: Open/Silent
- Fuel type: iesel
- Air Intake System: Turbo, Water/Air Cooling
- Start Control: Electric
- Rated Power Factor: COSΦ=0.8
- Voltage Regulation : ≥±5
- Voltage Regulation, Stead State: ≤±1
Standard Features
- Control System
- Battery Charger
- Generator
- Starting batteries( Maintenance-Free &Watering-Free) with connective wires
- Oil Drain Valve
- Exhaust System( including until muffler)
Genset optional parts
- Water Separator
- Engine Heater
- Daily Fuel Tank
- Rainproof Type
- Remote Control Panel
- Alternator Heater
- Soundproof Type
- Paralleling System
- Spare Parts
- Trailer Type
- Switch box
- Automatic Transfer Switch
| Model-NO | Prime Power | Engine Model | cylinder | Displacement | Fuel consumption | Dimension | Weight | |
| KW | KVA | (L) | (g/kw.h) | L *W*H (mm) | (kg) | |||
| BF-Y12G | 12 | 15 | YC2108D | 2 | 2.199 | 235 | 1790×870×1500 | 580 |
| BF-Y15G | 15 | 18.75 | YC2108D | 2 | 2.199 | 235 | 1790×870×1500 | 580 |
| BF-Y20G | 20 | 25 | YC2115D | 2 | 2.493 | 235 | 1790×870×1500 | 600 |
| BF-Y40G | 40 | 50 | YC4D6C-D21 | 4 | 4.2 | 202 | 1800×780×1250 | 800 |
| BF-Y50G | 50 | 62.5 | YC4D85Z-D20 | 4 | 4.2 | 198 | 1900×780×1250 | 810 |
| BF-Y75G | 75 | 93.75 | YC6B135Z-D20 | 6 | 6.9 | 200 | 2300×850×1350 | 1200 |
| BF-Y100G | 100 | 125 | YC6B155L-D21 | 6 | 6.871 | 198 | 2400×850×1500 | 1300 |
| BF-Y120G | 120 | 150 | YC6B180L-D20 | 6 | 6.9 | 198 | 2400×850×1500 | 1400 |
| BF-Y150G1 | 150 | 187.5 | YC6A210L-D-20 | 6 | 7.25 | 192 | 2500×900×1650 | 1600 |
| BF-Y150G2 | 150 | 187.5 | YC6A230L-D-21 | 6 | 7.25 | 192 | 2500×900×1650 | 1600 |
| BF-Y180G | 180 | 225 | YC6L275L-D30 | 6 | 9.85 | 192 | 2800×1100×1700 | 2200 |
| BF-Y200G | 200 | 250 | YC6M285L-D20 | 6 | 9.85 | 195 | 2800×1100×1700 | 2300 |
| BF-Y250G | 250 | 312.5 | YC6M285L-D21 | 6 | 10.3 | 195 | 3000×1100×1800 | 2500 |
| BF-Y250G2 | 250 | 312.5 | YC6MK390L-D20 | 6 | 10.3 | 195 | 3000×1100×1800 | 2500 |
| BF-Y300G1 | 300 | 375 | YC6MK410L-D20 | 6 | 10.3 | 195 | 3000×1100×1800 | 2700 |
| BF-Y300G2 | 300 | 375 | YC6MKL470L-D20 | 6 | 12.16 | 192 | 3100×1100×1900 | 3000 |
| BF-Y350G | 350 | 437.5 | YC6K500L-D30 | 6 | 16.35 | 195 | 3600×1100×1950 | 3800 |
| BF-Y400G | 400 | 500 | YC6T600L-D20 | 6 | 16.35 | 195 | 3900×1100×2000 | 4050 |
| BF-Y440G | 440 | 550 | YC6T660L-D20 | 6 | 16.35 | 195 | 3950×1100×2000 | 4200 |
| BF-Y500G | 500 | 625 | YC6C900L-D20 | 6 | 16.35 | 195 | 4000×1200×2100 | 5000 |
| BF-Y550G | 560 | 700 | YC6C900L-D21 | 6 | 16.35 | 195 | 4000×1300×2100 | 5500 |
| BF-Y600G | 600 | 750 | YC6C900L-D22 | 6 | 39.58 | 195 | 4000×1400×2100 | 6000 |
| BF-Y640G | 640 | 800 | YC6C1020L-D20 | 6 | 39.58 | 195 | 4200×1500×2265 | 7000 |
| BF-Y720G | 720 | 900 | YC6C1020L-D20 | 6 | 39.58 | 195 | 4400×1500×2265 | 7000 |
| BF-Y800G | 800 | 1000 | YC6C1220L-D20 | 6 | 39.58 | 195 | 4400×1500×2265 | 7000 |
| BF-Y900G | 900 | 1125 | YC6C1320L-D20 | 6 | 39.58 | 195 | 4500×1500×2265 | 7000 |
| BF-Y1000G | 1000 | 1250 | YC12VC1680-D31 | 12 | 79.17 | 196 | 6500x2300x2600 | 13300 |
| BF-Y1200G | 1200 | 1500 | YC12VC2070-D31 | 12 | 79.17 | 196 | 6500x2300x2600 | 13400 |
| BF-Y1500G | 1500 | 1875 | YC12VC2510-D31 | 12 | 79.17 | 196 | 6500x2300x2600 | 13560 |
