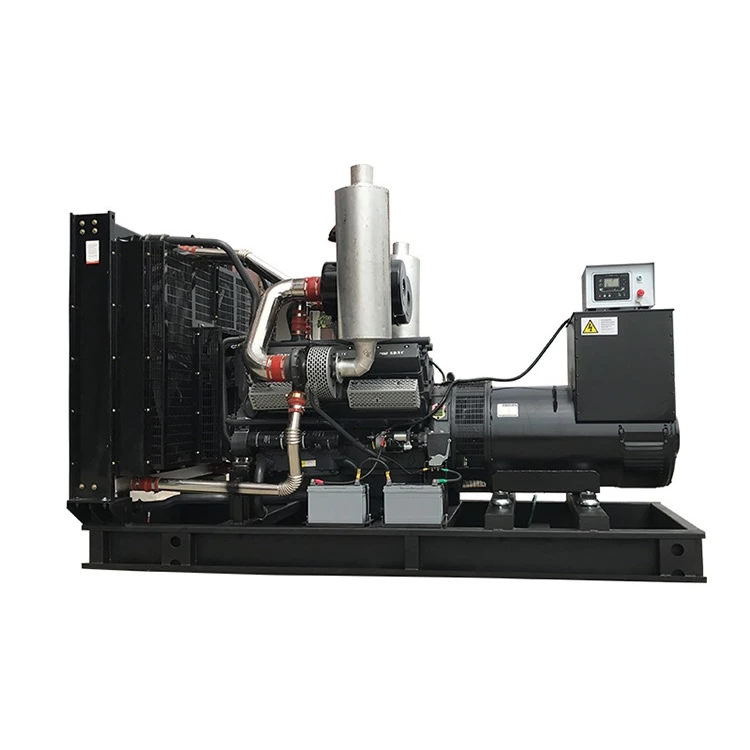

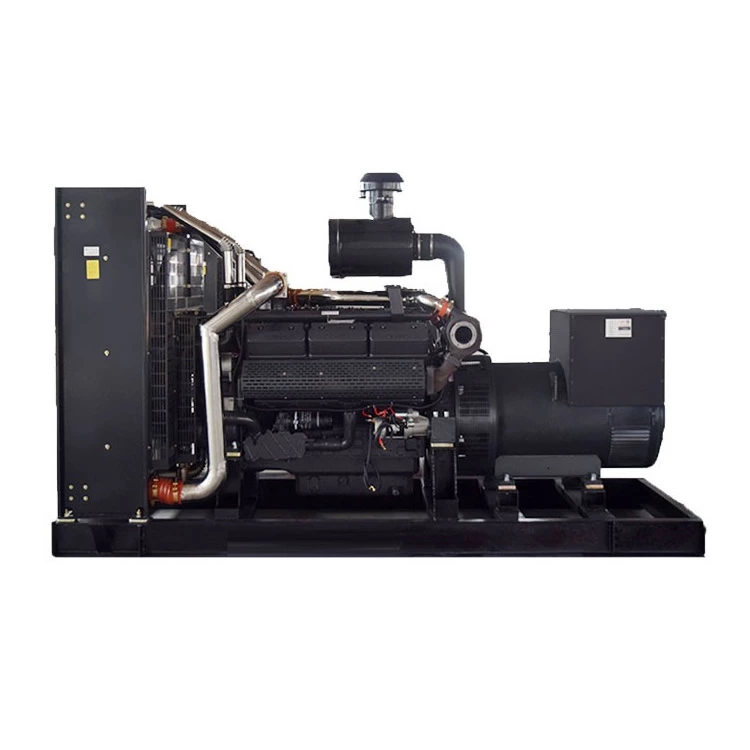

SDEC Series Generator Set
- Output Power
- Prime Power: 50KW-800KW
- Engine
- SDEC
- Alternator
- Stamford/Marathon/Baifa
- Frequency
- 50HZ/60HZ
- Type
- Diesle Genset
SDEC Diesel Generator Set For Sale
Genset Main Technical Data
- Genset Model: BF-S15 TO BF-S800
- Frequency:50hz/60hz
- Speed: 1500/1800rpm
- Voltage: 220v-600v
- Phase: Three phase four wires
- TYPE: Open/Silent
- Fuel type: iesel
- Air Intake System: Turbo, Water/Air Cooling
- Start Control: Electric
- Rated Power Factor: COSΦ=0.8
- Voltage Regulation : ≥±5
- Voltage Regulation, Stead State: ≤±1
Standard Features
- Control System
- Battery Charger
- Generator
- Starting batteries( Maintenance-Free &Watering-Free) with connective wires
- Oil Drain Valve
- Exhaust System( including until muffler)
Genset optional parts
- Water Separator
- Engine Heater
- Daily Fuel Tank
- Rainproof Type
- Remote Control Panel
- Alternator Heater
- Soundproof Type
- Paralleling System
- Spare Parts
- Trailer Type
- Switch box
- Automatic Transfer Switch
| Model-NO | Prime Power | Engine Model | cylinder | Displacement | Fuel consumption | Dimension | Weight | |
| KW | KVA | (L) | (g/kw.h) | L *W*H (mm) | (kg) | |||
| BF-S15G | 55 | 68.75 | SC4H95D2 | 4 | 4.3 | ≤204 | 1910*893*1170 | 940 |
| BF-S75G | 75 | 93.75 | SC4H115D2 | 4 | 4.3 | ≤205 | 1950*893*1170 | 970 |
| BF-S100G | 100 | 125 | SC4H160D2 | 4 | 4.3 | ≤198 | 2060*933*1185 | 1020 |
| BF-S120G | 120 | 150 | SC4H180D2 | 4 | 4.3 | ≤198 | 2100*933*1185 | 1080 |
| BF-S128G | 128 | 160 | SC8D220D2 | 6 | 6.5 | ≤193 | 2400*940*1376 | 1250 |
| BF-S150G | 150 | 187.5 | SC7H230D2 | 6 | 6.5 | ≤193 | 2400*940*1376 | 1250 |
| BF-S150G2 | 150 | 187.5 | SC7H250D2 | 6 | 6.5 | ≤193 | 2446*940*1376 | 1330 |
| BF-S200G | 200 | 250 | SC8D280D2 | 6 | 8.27 | ≤200 | 2515*980*1500 | 1520 |
| BF-S250G | 250 | 312.5 | SC9D340D2 | 6 | 8.82 | ≤195 | 2706*1040*1486 | 1750 |
| BF-S300G | 300 | 375 | SC12E460D2 | 6 | 11.8 | ≤192 | 3175*1100*1595 | 2900 |
| BF-S350G | 350 | 437 | SC15G500D2 | 6 | 14.16 | ≤200 | 3156*1230*1674 | 2970 |
| BF-S400G | 400 | 500 | SC25G610D2 | 12 | 25.8 | ≤202 | 3533*1400*1992 | 4300 |
| BF-S450G | 450 | 562.5 | SC25G690D2 | 12 | 25.8 | ≤202 | 3548*1400*1992 | 4300 |
| BF-S500G | 500 | 625 | SC27G755D2 | 12 | 26.8 | ≤202 | 3548*1400*1992 | 4450 |
| BF-S550G | 550 | 687.5 | SC27G830D2 | 12 | 26.6 | ≤202 | 3548*1400*1992 | 4450 |
| BF-S650G | 600 | 750 | SC27G830D2 | 12 | 26.6 | ≤202 | 3548*1400*1992 | 4450 |
| BF-S650G | 650 | 812.5 | SC33W990D2 | 6 | 32.8 | ≤215 | 4362*1570*2135 | 7070 |
| BF-S700G | 700 | 875 | SC33W990D2 | 6 | 32.8 | ≤215 | 4362*1570*2135 | 7070 |
| BF-S800G | 800 | 1000 | SC33W1150D2 | 6 | 32.8 | ≤215 | 4433*1775*2378 | 8000 |
